Spectroscopy platform

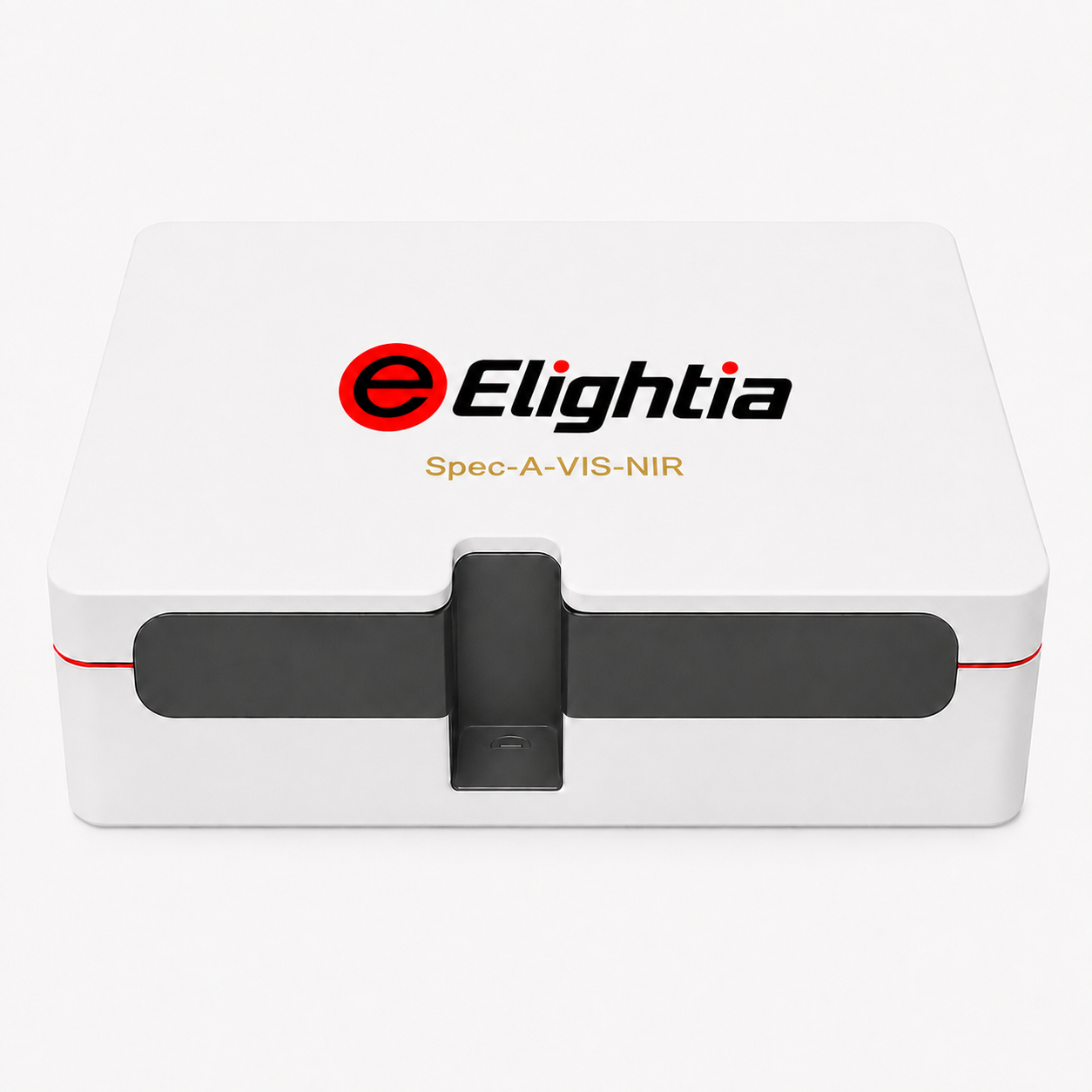

Spec-A-VIS-NIR
A configurable visible and near-infrared array spectrometer engineered for fast, reliable spectral acquisition across laboratory, test, and system-integration applications.
Product overview
Flexible spectral measurement in a unified platform.
Spec-A-VIS-NIR combines a symmetrical Czerny–Turner optical architecture with configurable gratings and acquisition parameters. The platform can be adapted for emission, transmission, reflection, illumination characterization, and integrated measurement systems.
350–1050Wavelength range, nm
< 0.25Wavelength accuracy, nm
300 HzMaximum acquisition rate
Technical specifications
Configured around the measurement.
Resolution and grating selection can be tailored to the intended spectral range, optical throughput, and measurement objective.
- Measurable wavelength range
- 350–1050 nm
- Spectral resolution
- 0.1–3.0 nm FWHM, configurable
- Wavelength accuracy
- < 0.25 nm
- Maximum acquisition rate
- 300 Hz
- Grating options
- 300, 600, 1200, or 1800 lines/mm; 500 nm blaze
Optical design
- Dimensions (W × D × H)
- 100 × 100 × 20 mm
- Weight
- 2.5 kg
